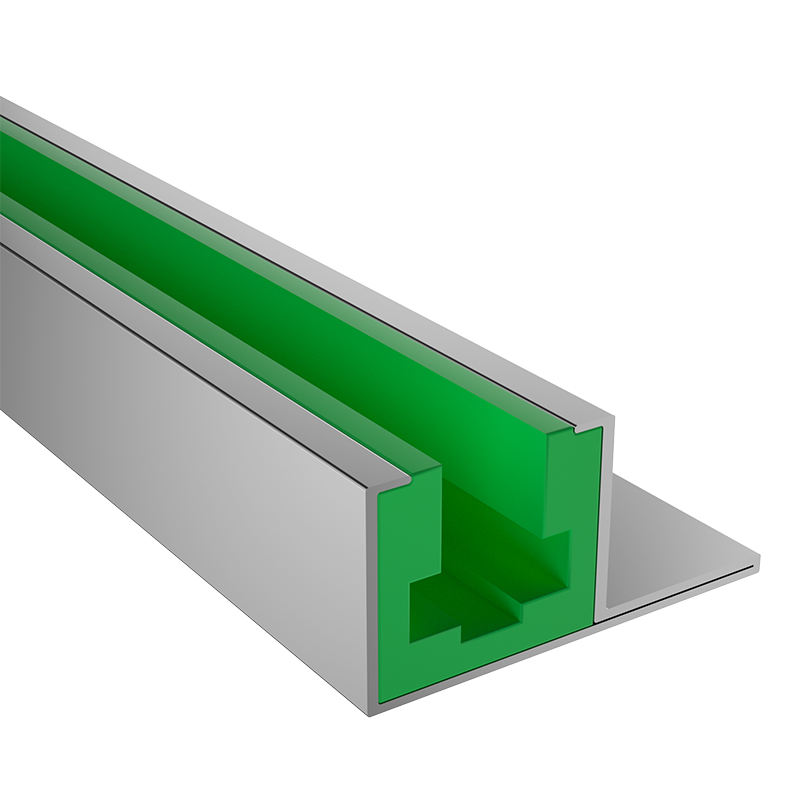

Ultra-high Molecular Weight Polyethylene (UHMWPE) Extruded Plastic Linear Guides

Introduction

Ultra-high molecular weight polyethylene (UHMWPE) extruded plastic linear guides are precision-engineered components designed to provide smooth, low-friction linear motion in a wide range of industrial applications. Manufactured from UHMWPE, these guides combine high wear resistance, exceptional chemical stability, and self-lubricating properties, making them ideal for demanding environments where reliability and longevity are critical.

These linear guides are commonly used in CNC machines, packaging equipment, conveyor systems, and automated material handling applications. This article provides an in-depth overview covering fault troubleshooting, application areas, packaging specifications, and after-sales service, making it a valuable reference for industrial buyers, B2B platforms, and technical websites.

Key Features and Benefits

1. Low Friction and High Wear Resistance

• UHMWPE material provides excellent self-lubrication, reducing wear on moving components.

• Ensures smooth, precise linear motion, minimizing energy consumption and improving operational efficiency.

2. Chemical and Environmental Resistance

• Resistant to corrosion, acids, alkalis, and many solvents, suitable for harsh industrial environments.

• Performs reliably under extreme temperatures and moisture conditions.

3. Long Service Life

• Durable UHMWPE construction extends component lifespan, reducing replacement frequency and maintenance costs.

• Resistant to impact and abrasion even under heavy loads.

4. Easy Installation and Customization

• Extruded design allows precision fitting to existing systems.

• Custom sizes, shapes, and lengths are available to meet unique application requirements.

Application Areas

UHMWPE extruded plastic linear guides are widely applied across industries, including:

Key Advantages in Applications:

• Reduces downtime caused by mechanical wear.

• Improves machine efficiency through consistent linear motion.

• Low maintenance requirements due to self-lubricating properties.

Fault Troubleshooting and Maintenance

Even durable UHMWPE guides can experience issues if not properly maintained. Common faults and solutions include:

Maintenance Tips:

• Inspect guides regularly for debris, cracks, or deformation.

• Maintain alignment to prevent uneven wear.

• Store spare guides in a clean, dry environment to prevent contamination or warping.

• Avoid excessive loading beyond manufacturer specifications.

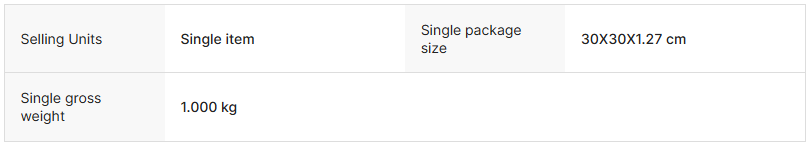

Packaging Specifications

Proper packaging ensures UHMWPE linear guides arrive undamaged and ready for installation:

Tips for Packaging and Shipping:

• Use reinforced cartons for long-length guides.

• Include anti-static or moisture-resistant packaging if required by application.

• Mark cartons clearly with handling instructions to prevent mechanical damage.

After-Sales Service

Providing reliable support is essential for customer satisfaction and long-term performance. Services typically include:

1. Warranty

• Most UHMWPE extruded linear guides come with a 12–24 month limited warranty covering material defects and manufacturing faults.

2. Technical Support

• Installation guidance, troubleshooting, and system compatibility advice.

• Remote or on-site support may be available for industrial-scale installations.

3. Replacement Policy

• Defective or damaged guides can be replaced within the warranty period.

• Custom-size replacements are often available for specialized systems.

4. User Training

• Some suppliers offer guidance on proper maintenance, cleaning, and load management to maximize lifespan.

Best Practices for After-Sales Management:

• Keep records of installation and maintenance activities.

• Follow manufacturer’s recommended operating conditions.

• Report any defects immediately to the supplier for timely resolution.

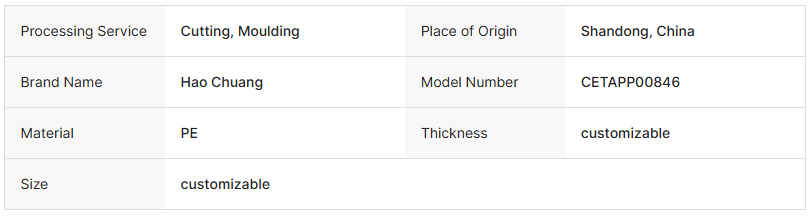

Technical Specifications (Example)

Installation Guidelines

1. Prepare the Mounting Surface

• Ensure surfaces are clean, flat, and free of debris.

2. Align the Guide

• Position the linear guide accurately along the intended path.

3. Fixing and Securing

• Attach using screws, bolts, or adhesive pads as per design requirements.

4. Test Movement

• Run the system to confirm smooth, consistent linear motion.

5. Adjust if Needed

• Ensure guides are parallel and properly supported to avoid uneven wear.

Pro Tips:

• Avoid excessive bending or twisting during installation.

• Check compatibility with moving loads and environmental conditions.

• Regular inspection ensures long-term efficiency and prevents unexpected downtime.

Conclusion

UHMWPE extruded plastic linear guides provide durable, low-friction, and chemically resistant solutions for industrial machinery, automation, and material handling systems. With proper installation, routine maintenance, and adherence to operating specifications, these guides can deliver years of reliable service.

By selecting high-quality UHMWPE guides, companies benefit from:

• Reduced downtime and maintenance costs

• Smooth and efficient linear motion

• Resistance to harsh chemicals and abrasive environments

• Long-term operational reliability

Investing in premium UHMWPE extruded plastic linear guides ensures enhanced productivity, equipment longevity, and cost-effective industrial operations.
