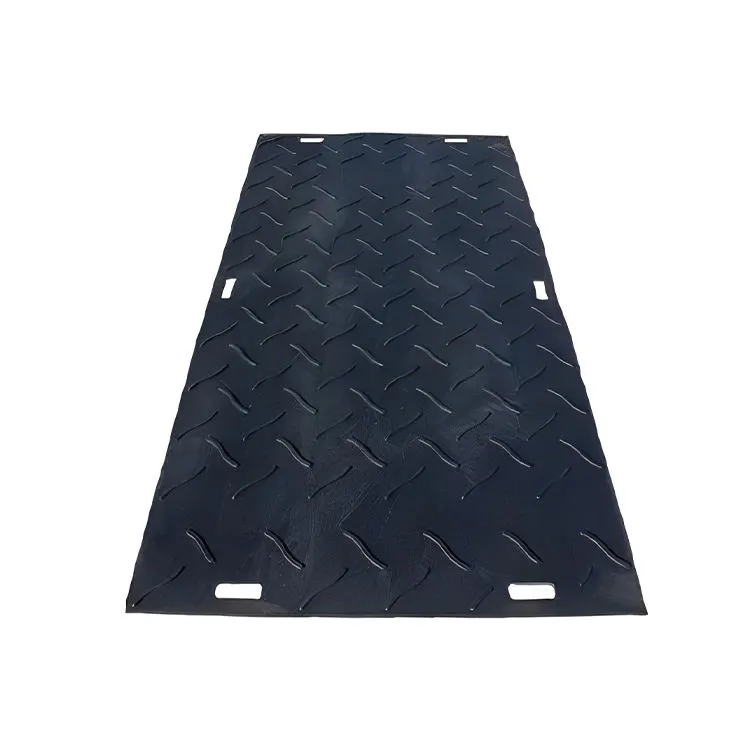

High Abrasion-Resistant Heavy Duty Mud Ground Mat – Ground Protection Mats
The High Abrasion-Resistant Heavy Duty Mud Ground Mat is designed to provide durable and reliable ground protection for construction sites, industrial projects, and temporary roadways, especially in muddy, uneven, or soft terrain. Constructed from premium heavy-duty materials, these mats are engineered to resist abrasion, wear, and deformation, ensuring long-lasting performance even under heavy loads.
With a modular, interlocking design, these mats are easy to deploy, relocate, and store, offering a cost-effective and environmentally friendly solution for ground protection. Ideal for construction projects, outdoor events, emergency access routes, and industrial sites, these mats prevent soil compaction, erosion, and surface damage, ensuring safety and efficiency in challenging environments.
Heavy-Duty Composite Material: High-strength polyethylene or HDPE blends reinforced with composite fibers.
Abrasion Resistance: Protects against wear from vehicles, machinery, and foot traffic.
Weather Resistance: Performs reliably in wet, muddy, or cold conditions.
Non-Slip Surface: Provides safe traction for vehicles and pedestrians.
Modular Interlocking Design: Enables quick assembly and a continuous protective layer.
Muddy construction and industrial sites.
Temporary roads and emergency access routes.
Outdoor events and festival pathways.
Landscaping and sensitive terrain protection.
The mats are designed with the following principles:
Surface Protection: Prevents soil erosion, compaction, and surface damage.
Durability: Resists abrasion, heavy loads, and harsh environmental conditions.
Ease of Installation: Lightweight and modular for rapid deployment.
Sustainability: Made from recyclable and environmentally friendly materials.
Safety: Anti-slip surface ensures pedestrian and vehicle safety.
| Feature | Specification |
|---|---|
| Material | HDPE / Heavy-duty composite |
| Dimensions (Standard) | 2 m × 1 m, 2.4 m × 1.2 m, 3 m × 1.5 m |
| Thickness | 25–35 mm |
| Weight per Panel | 30–60 kg |
| Max Load Capacity | Up to 80 tons per panel |
| Surface Finish | Textured, non-slip |
| UV Resistance | Yes |
| Temperature Range | -40°C to 80°C |
| Lifespan | 8–12 years (depending on usage) |
Ground Surface: Clear of large rocks, debris, and sharp objects.
Temperature: Ideal installation between 5°C – 40°C.
Weather Conditions: Avoid heavy rain during deployment.
Site Preparation
Remove debris and level uneven terrain if possible.
Layout Planning
Measure the area and plan the interlocking arrangement.
Mat Placement
Position mats side by side, ensuring interlocks are fully engaged.
Securing Mats
For high-traffic or slope areas, use optional stakes or weights.
Inspection
Check alignment, stability, and surface continuity before vehicle or foot traffic.
| Task | Frequency | Notes |
|---|---|---|
| Surface Cleaning | After each use | Remove mud and debris with water and soft brush |
| Interlock Inspection | Monthly | Ensure all connectors are secure |
| Structural Inspection | Quarterly | Check for cracks, deformation, or wear |
| Storage | Off-season | Keep mats in dry, shaded area to prevent UV degradation |
Reinforced Interlocks: Replace or upgrade interlocking components for heavy-duty applications.
Surface Coating Refresh: Apply non-slip coatings for extended lifespan in high-traffic areas.
Periodic Load Testing: Ensure mats maintain structural integrity under repeated heavy loads.
Replacement Schedule: Replace severely damaged or warped mats to maintain optimal protection.
Eco-Friendly Materials: Made from 100% recyclable HDPE/composite materials.
Non-Toxic: Safe for use in sensitive environmental areas.
Compliance: Meets international standards for temporary ground protection and construction site safety.
Soil Protection: Reduces erosion, compaction, and environmental disturbance during construction or events.
| Issue | Possible Cause | Recommended Solution |
|---|---|---|
| Misalignment | Improper interlocking | Re-align mats and secure connectors |
| Warping/Bending | Heat exposure or improper stacking | Store flat and shaded; replace if severe |
| Slippery Surface | Mud or debris accumulation | Clean mats regularly with water |
| Connector Damage | Excessive impact or misuse | Replace damaged interlocks |
| Excessive Wear | Heavy traffic | Rotate or replace mats periodically |
| Component | Material | Function | Replacement Frequency |
|---|---|---|---|
| Interlocking Fasteners | HDPE/Metal | Secure adjacent mats | Every 1–2 years or as needed |
| Edge Guards | HDPE/Rubber | Protect mat edges from damage | As needed |
| Base Support Panels | HDPE Composite | Reinforce soft terrain | As required |
| Anti-Slip Coating | Composite | Maintain traction for vehicles/pedestrians | Every 2–3 years |
| Packaging Type | Details |
|---|---|
| Standard Pallets | 10–20 mats per pallet, stacked flat |
| Protective Wrapping | Foam padding or shrink film for transport safety |
| Shipping Options | Land transport, sea freight, container |
| Labeling | Dimensions, weight, batch number, handling instructions |
Weight per Panel: 30–60 kg depending on size
Container Loading: 200–400 mats per 20 ft container depending on dimensions
The High Abrasion-Resistant Heavy Duty Mud Ground Mat provides a versatile, durable, and eco-friendly solution for ground protection in muddy and challenging environments. Their heavy-duty construction, modular design, and abrasion-resistant surface ensure:
Reliable protection for soil, vegetation, and finished surfaces
Safety for vehicles and pedestrians
Long-lasting performance under harsh conditions
Cost-effective and reusable operation
By following the recommended installation, maintenance, and upgrade plans, these mats deliver maximum lifespan, efficient project execution, and minimal environmental impact, making them an ideal choice for construction sites, industrial applications, and temporary access solutions.
